JSCAD

Create 3D designs by writing simple code

Example of the JSCAD logo

Start by creating a text file in the editor of your choice. Save it with a .js file extension, and when you are ready, drag it onto the JSCAD modeling window.
Here's the file for the JSCAD Logo design Download

Try it

Reuse other JSCAD designs

Find a design at NPM.org, and import it. Then use the imported design to create any number of parts.

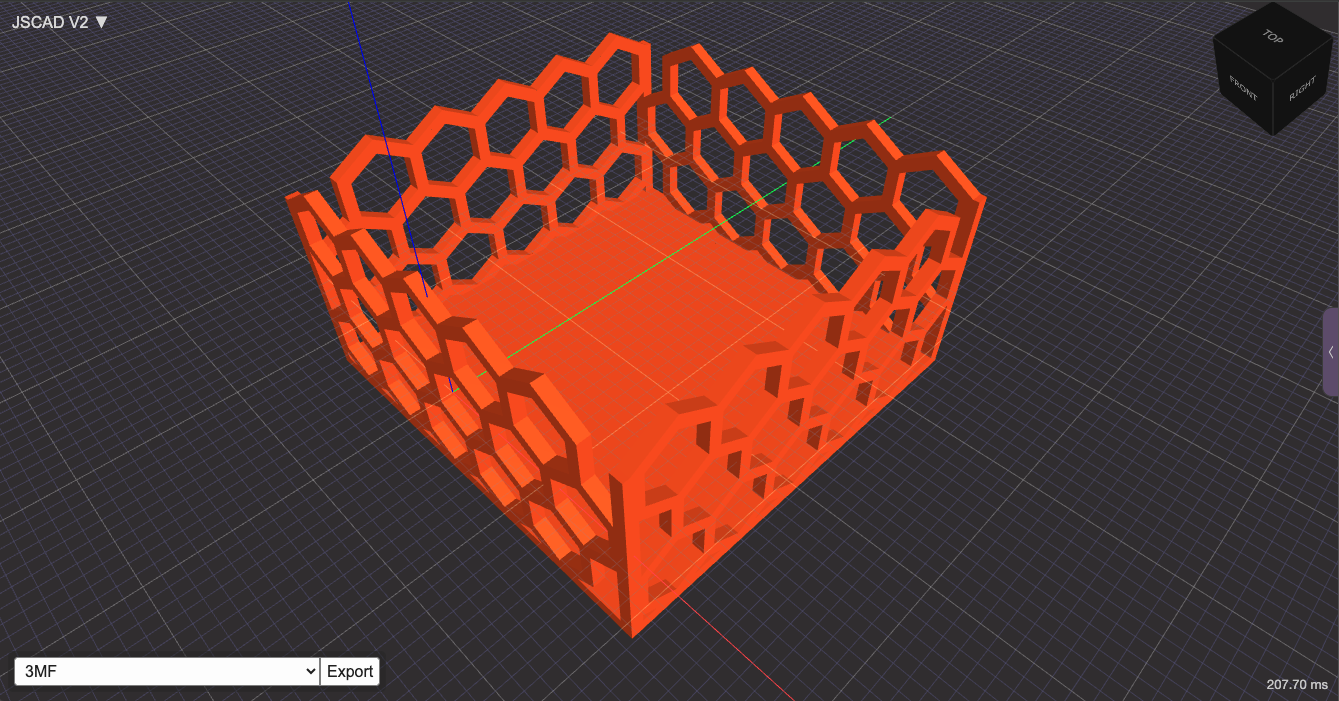

Here's the file for the Box design Download

Try it

Export designs for printing

Export STL meshes for simple 3D printing

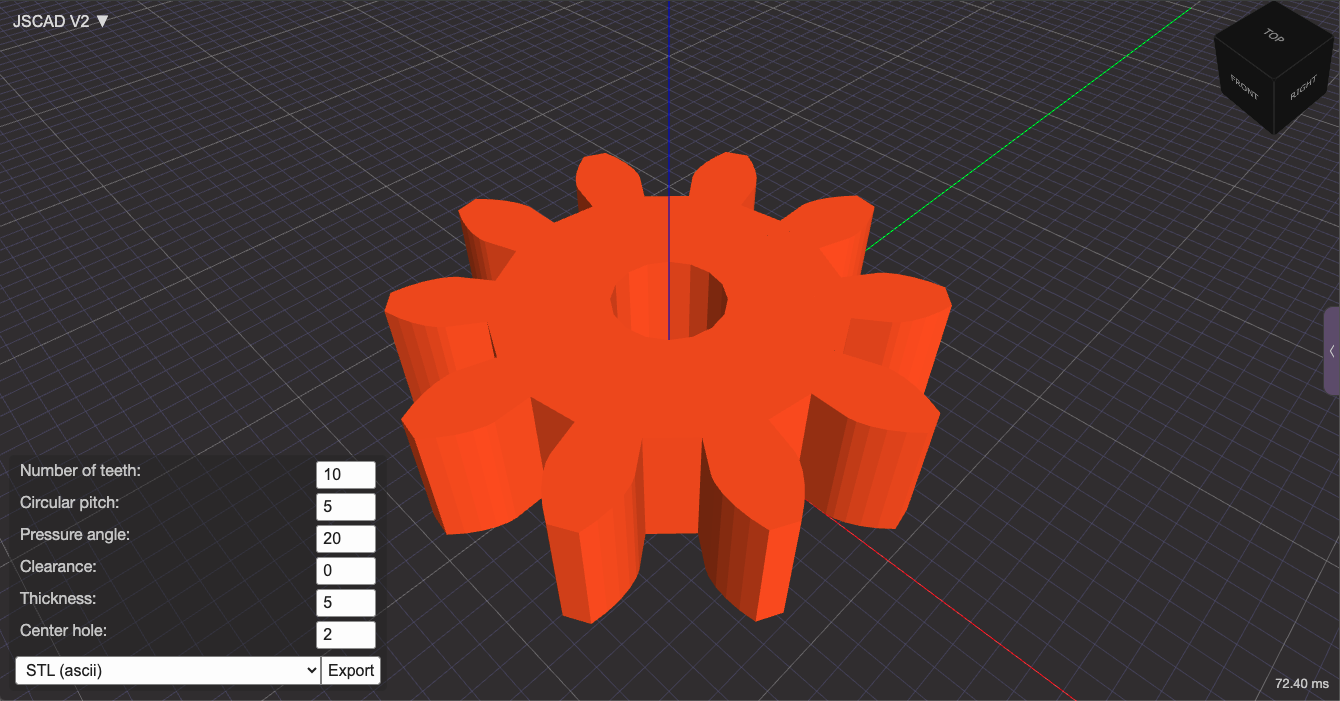

All 3D slicers support STL meshes. Just select STL from the list of supported formats, and export. Try exporting from the Parametric Gear example.

Try it

Export 3MF packages for multi-color 3D printing

Many 3D slicers support 3MF packages, which allows multi-part, multi-color 3D printing. Just select 3MF from the list of supported formats, and export.

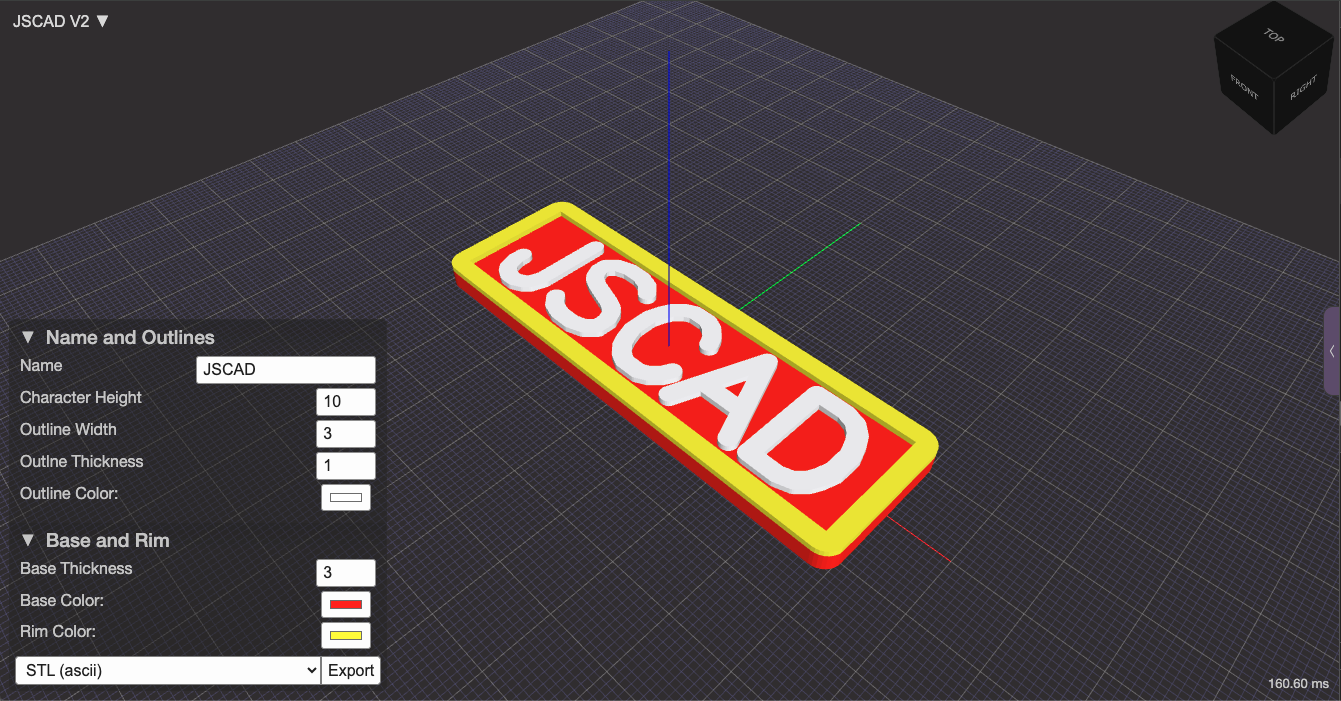

Here's the file for the Nameplate design Download

Try it

Supported formats

JSCAD supports all the standard file formats for 3D printing, mesh exchange, and design sharing.

Format	Notes	Reference
AMF	Additive Manufacturing format for 3D objects	Wikipedia: AMF
DXF	AutoCad Drawing Interchange format for 2D and 3D objects	Wikipedia: DXF
JSON	JSON (JavaScript Object Notation) is a lightweight data-interchange format	JSON.org
OBJ	Wavefront Geometry File format	Wikipedia: OBJ
STL	STL format for the surface geometry of 3D objects	Wikipedia: STL
SVG	Scalable Vector Graphics for 2D objects	SVG Standard
X3D	Web3D format for 3D objects	Web3D.org
3MF	3MF format for 3D printing	3MF.io

Create complex 3D designs

Create projects with multiple parts

Need more? Complex designs always require parts. JSCAD supports folders which can have any number of parts. Assemble or create the parts, drop them into a folder. and use them to create a super design.

Try it

Use STL, Fonts, SVG files inside designs

Grab any STL file from Thingiverse or Printables, and use the STL mesh (shape) in designs. Move it, join it, cut it. It's all possible.

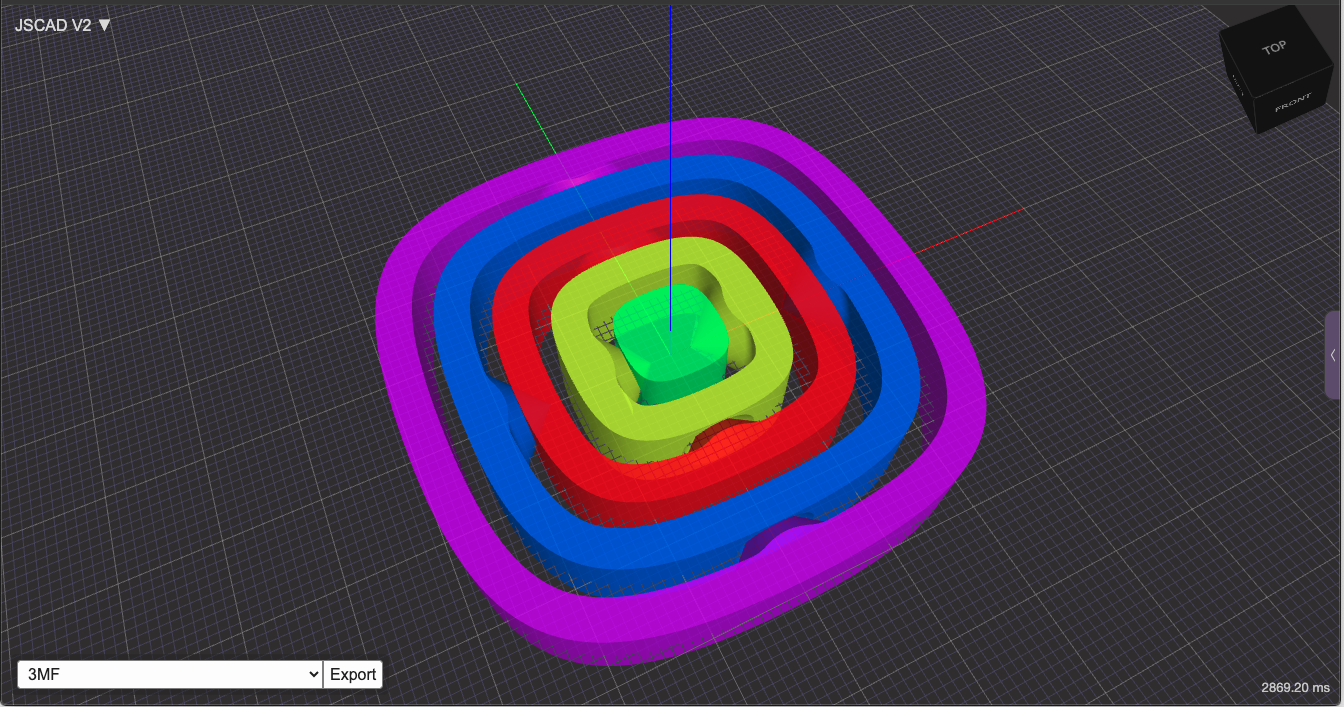

Here's the Spinners project to get started Download

Try it

SVG files can also be imported. Bring in one of the super cool SVG images, and extrude it to 3D. Then add the 3D shape to personalize designs.

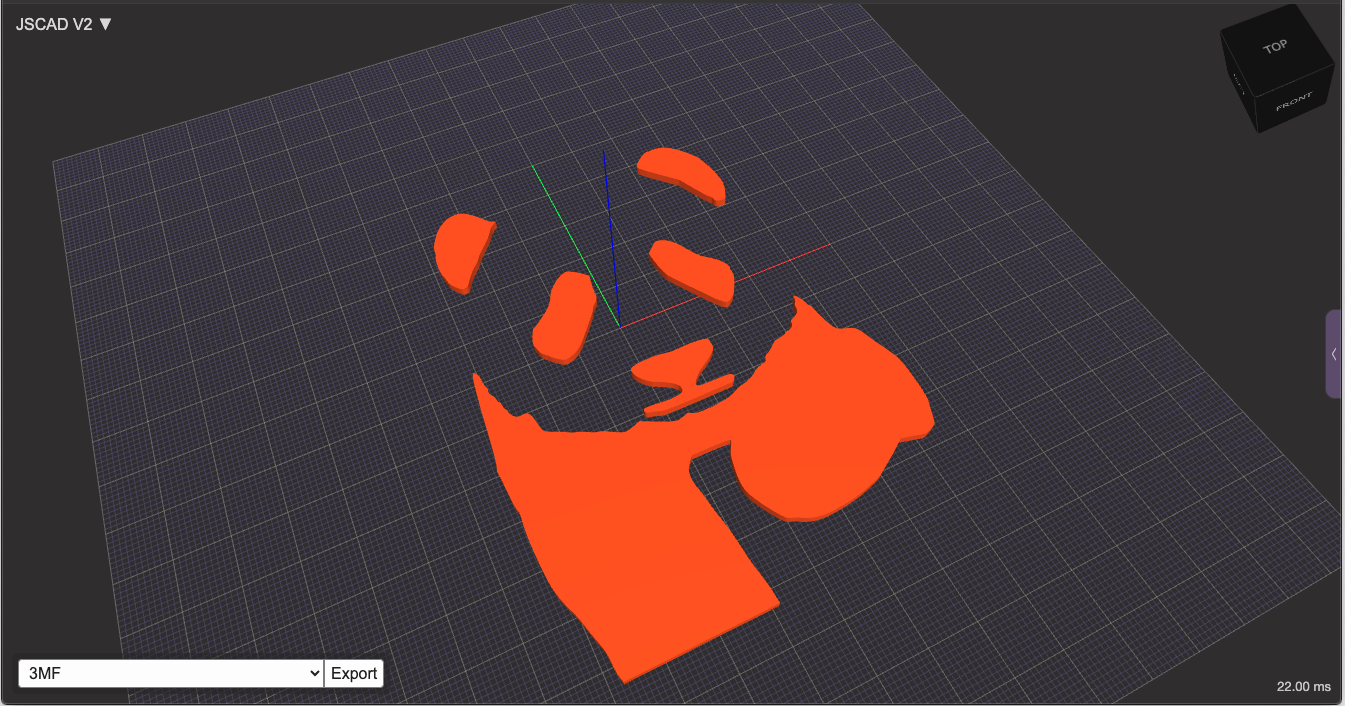

Here's the Panda project to get started Download

Try it

Include other Javascript libraries
